Small handheld mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer

book schematics code hex file spreadsheet pc-wave movie picture faq forum
Manual EN
Translations		 Schematics Code Hex BOM Interface Videos Pictures FAQ Forums

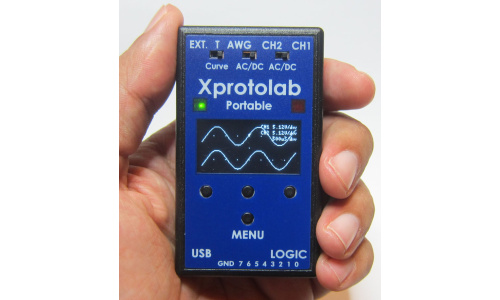

This is the portable version of the Xprotolab. The Xprotolab Portable is a small mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer.

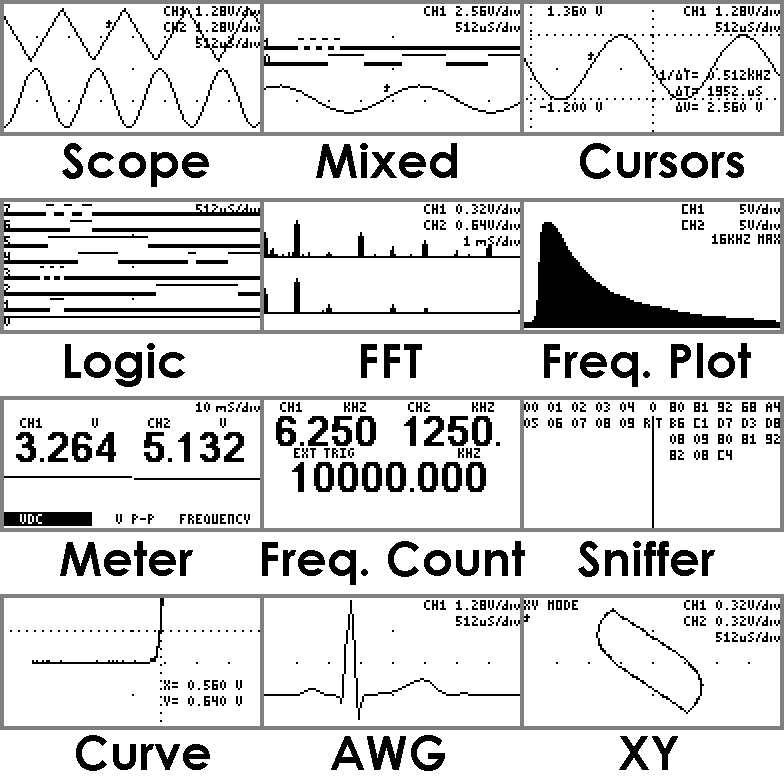

Features:

  • Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.
  • Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
  • Meter Mode: Average, Peak to peak and Frequency readout.
  • XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).
  • Spectrum Analyzer with different windowing options and selectable vertical log.
  • Horizontal and Vertical Cursors with automatic waveform measurements.
  • Arbitrary Waveform Generator with Sweep on all parameters.
  • Display options: Persistence, Different grid options, and more.
  • Curve tracer function

General Specifications:

  • ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROM
  • Graphic OLED display 1.3", 128x64 pixels
  • Enclosure size: 3.13" x 1.83" 0.7"
  • Li-Ion Battery 600mAh
  • PDI interface.
  • 4 tactile switches
  • USB connectivity: Windows, Linux, MAC, Android

Logic Analyzer specifications:

  • 8 Digital Inputs, 3.3V / 5V
  • 820k ohm input impedance
  • Maximum sampling rate: 2MSPS
  • Frequency counter: 16Mhz
  • Protocol Sniffer: UART, I2C, SPI
  • Internal pull up or pull down.
  • Buffer size: 256

Oscilloscope specifications:

  • 2 Analog Inputs
  • Maximum Sampling rate: 2MSPS
  • Analog Bandwidth: 200kHz
  • Resolution: 8bits
  • Input Impedance: 1M? 15pF
  • Buffer size per channel: 256
  • Input Voltage Range: -14V to +20V

AWG specifications:

  • 1 Analog Output
  • Maximum conversion rate: 1MSPS
  • Analog Bandwidth: 50kHz
  • Resolution: 8bits
  • Output current > +/- 7mA
  • Buffer size: 256
  • Output Voltage: +/- 4V

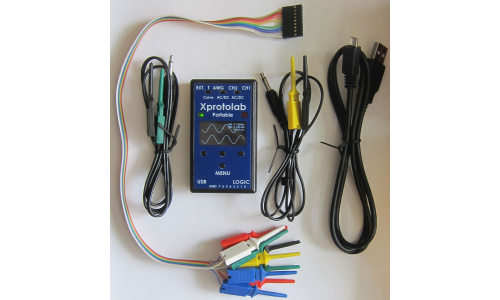

More information about the accessories can be found here:

You can select which accesories you want to include below.

List of the comments:
rostifer
No vote yet
I can\'t believe all of the useful functions that have been crammed into one tiny device! I\'m just starting to put it to use but I have been very happy with it so far. The dual display voltmeter has come in handy several times. Don\'t get me wrong, this won\'t replace my Fluke meter but as a \"Swiss Army knife\" in my computer bag, it\'s great. The scope is amazingly useful despite its limited resolution and the triggering options rival my larger 4 trace scope. The price is very reasonable and the documentation is excellent.
ve6cmm
No vote yet
This is a wonderful piece of equipment. I have the original, and I have a Velleman portable, but the Xprotolab delux provides me with everything I need in a portable scope, and more. The display is small, but easily readable. Lots of functions are available, but I need to read the manual again to get comfortable with using it. Grabriel did a fantastic job designing this scope.
