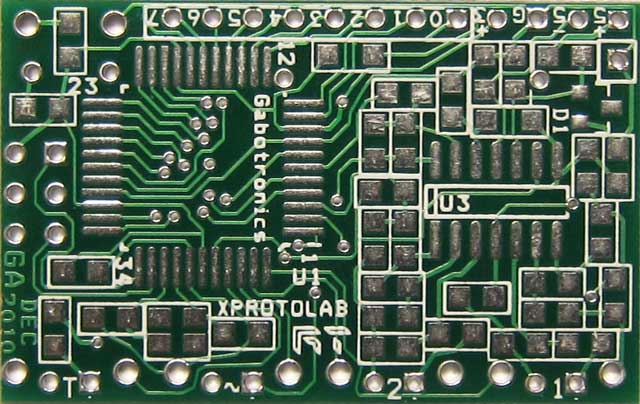

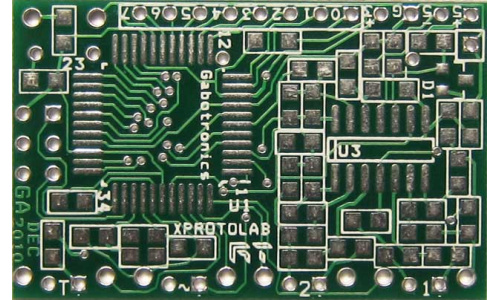

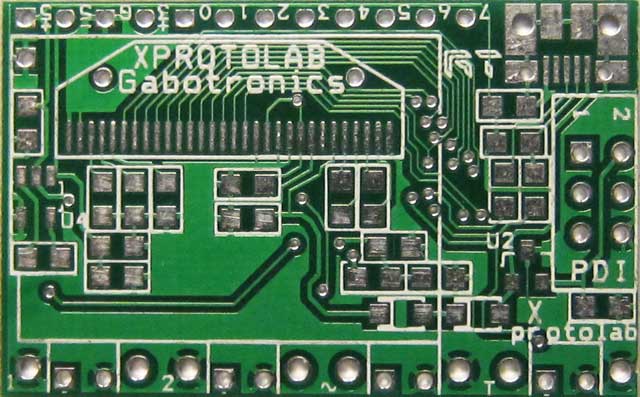

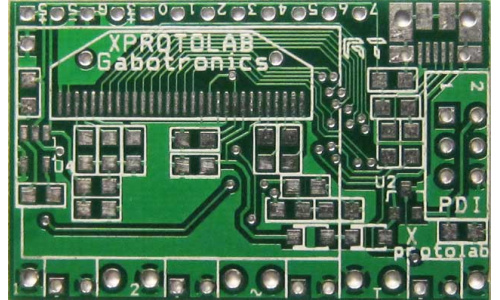

PCB for Xprotolab
book schematics spreadsheet faq forum
Assembly Schematics BOM FAQ Forums

Build your own Xprotolab with this PCB. PCB version 1.8.

1.60" x 1.00" 4 layer board.

List of the comments:
mpechner
No vote yet
Never got to build mine. BECAUSE YOU NEED A TOASTER AND PASTE. Do not hand solder this unless you are a SMT GOD or have a oven.rnrnThe Crystal has the pads under the chip. The OLED ribbon has to be soldered.rnrnthe USB pins are impossible.rnrnI gave up after failing with the crystal.rnrnTotally disappointed.rnrn
