Small handheld mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer

Manual EN Translations	Schematics	Code	Hex	BOM	Interface	Videos	Pictures	FAQ	Forums

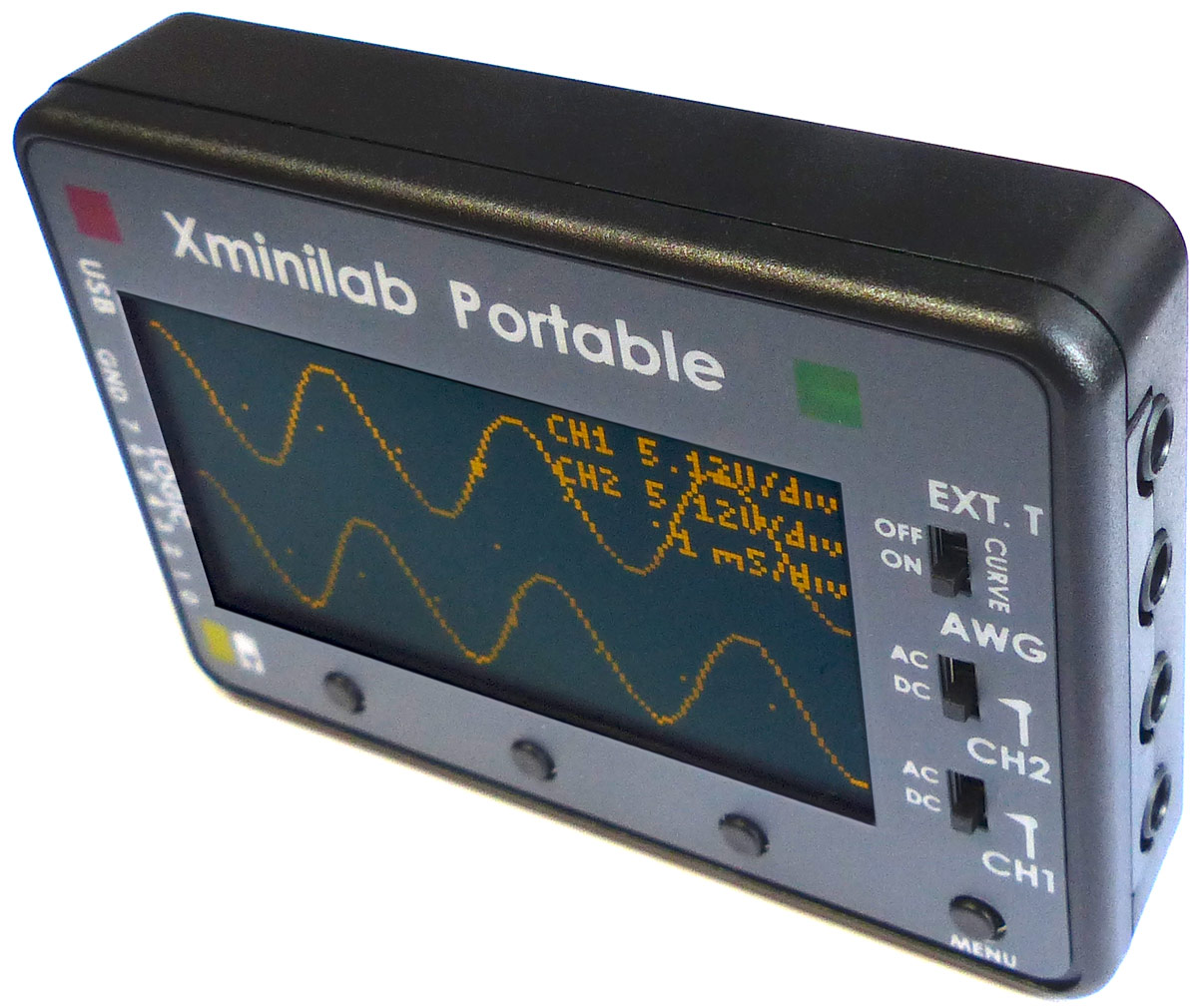

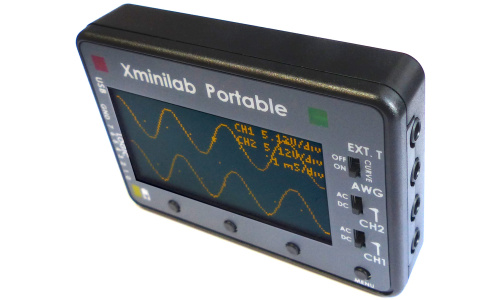

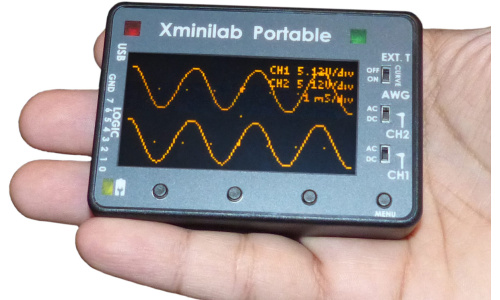

This is the portable version of the Xminilab. The Xminilab Portable is a small mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer.

Features:

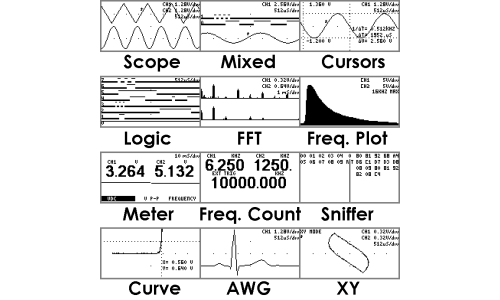

• Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.
• Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
• Meter Mode: Average, Peak to peak and Frequency readout.
• XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).
• Spectrum Analyzer with different windowing options and selectable vertical log.
• Horizontal and Vertical Cursors with automatic waveform measurements.
• Arbitrary Waveform Generator with Sweep on all parameters.
• Display options: Persistence, Different grid options, and more.
• Curve tracer function

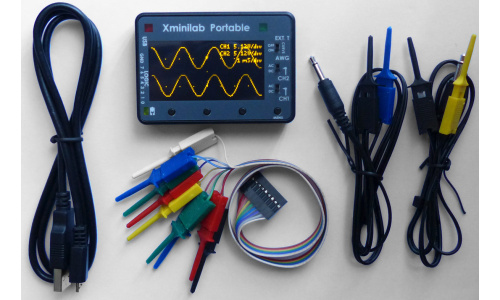

More information about the accessories can be found here:

• Logic analyzer probe
• Hook clip probes
• Carrying case
• Micro USB Cable: 3ft or 6ft
• 3.5mm to BNC converter cable
• 3.5mm to BNC adapter
• Tripod Adapter

You can select which accessories you want to include below.
