Datasheet	SSD1306	Library

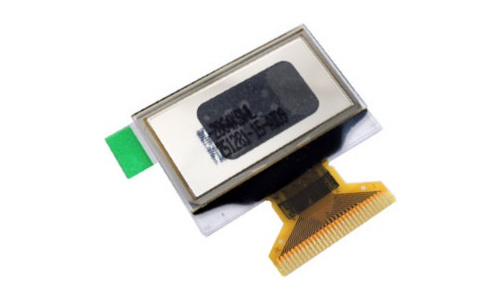

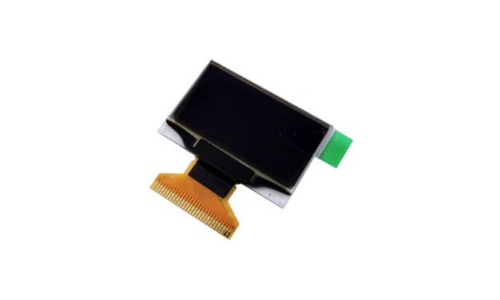

OLED UG-2864KSWLG01

Features:

• 128x64 Pixels
• Display Color: Monochrome (White)
• SSD1306 controller with integrated DC-DC converter
• 1KB SRAM
• Panel Size: 34.50 ? 23.00 ? 1.45 mm
• Active Area: 29.42 ?14.70 mm
• Weight: 2.18g
• Parallel / SPI / I2C Interface
• Operating Voltage: 3.3V

For an example on how to use the software library, you can check the Xprotolab Source Code

OLED supplied by:
