Datasheet	SSD1306	Library

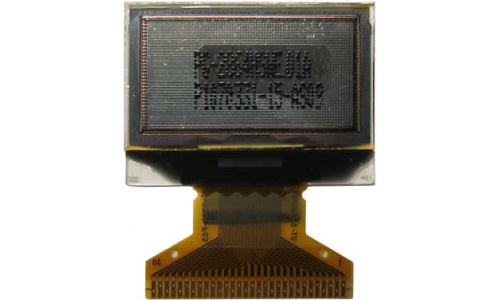

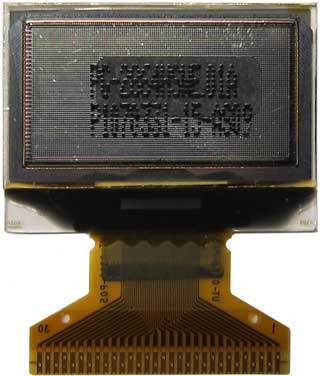

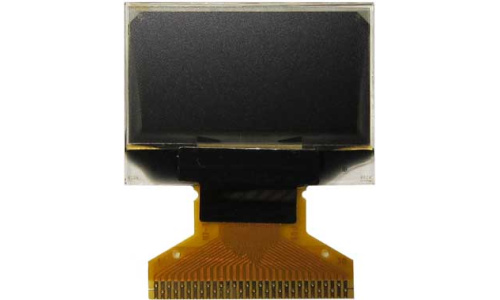

OLED UG-2864HSWEG01

Features:

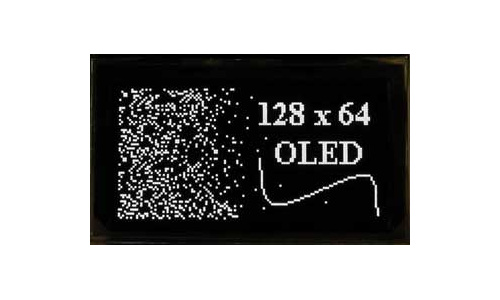

• 128x64 Pixels
• Display Color: Monochrome (White)
• SSD1306 controller with integrated DC-DC converter
• 1KB SRAM
• Panel Size: 26.70 ? 19.26 ? 1.45 mm
• Active Area: 21.744 ? 10.864 mm
• Weight: 1.54g
• Parallel / SPI / I2C Interface
• Operating Voltage: 3.3V

For an example on how to use the software library, you can check the Xprotolab Source Code

OLED supplied by:
